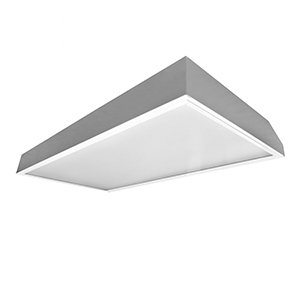

GCR721
2' Wide Recessed Cleanroom Luminaire with Tapered Housing for Standard T-Bar Grids (Class 1000/10000)
Applications: Cleanroom, Sealed Ceiling Areas, Commercial
Standard Dimensions: 2′ x 2′, 2′ x 4′
Features
- 0-10V dimming driver standard
- Supports California Title 24 compliance
- Tapered housing compatible with 1-2″ high T-Bar grids
Options
- Range of lumen outputs and color temperatures
- Tunable white (2700K – 6500K)
- Colored LEDs, including True/Native Amber
- Sensors and controls
- Lens options
- Antimicrobial finish
- Emergency battery pack
- Customization available upon request
Construction
- Class 1000/10,000 (ISO Class 6/7 Equivalent)
- 22 gauge cold -rolled steel welded housing
- 20 gauge cold rolled steel door frame secured by full length piano hinge and spring-loaded latches
- Door frame sealed with closed cell neoprene gasket
- All parts fitted and sealed
Finish
- Painted after fabrication
- Baked white powder-coated finish
- Minimum reflectance 90%
Optical
- Inverted clear prismatic acrylic lens
- Nominal 0.125″ thickness standard
Listing
- UL USA and Canada Listed
- Suitable for damp locations
Warranty
- 5-year limited warranty
- 10-year limited warranty available
Electrical
- High-efficiency drivers paired with long-life LEDs
- Service life >50,000 hours (L70)
- Universal voltage 120V ~ 277V (347V/480V available)
- Power Factor (PF) ≥ 0.9
- Total Harmonic Distortion (THD) ≤ 20%
