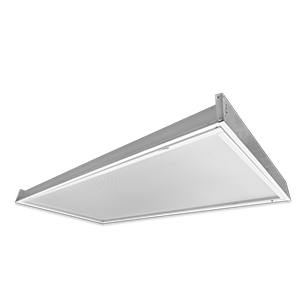

GSL320
2' Wide Recessed Hinge/Latch Door Frame Luminaire
Applications: Commercial, Office
Features
- 0-10V LED dimming driver standard
- Supports California Title 24 compliance
- Suitable for damp locations
Options
- Controls
- Lens
- Flexible conduit
- 20 ga. cold rolled steel housing
- Emergency battery pack
- Customization available upon request
Construction
- 22 ga. cold rolled steel housing
- 20 ga. cold rolled steel door frame
secured by T-hinges and positive spring loaded latches - One-way polyurethane gasket
Finish
- Pre-painted
- Baked white polyester finish
- Minimum reflectance 86%
Optical
- Clear prismatic acrylic lens
Listing
- UL USA and Canada Listed
- Suitable for damp locations
Warranty
- 5-year limited warranty
- 10-year limited warranty available
Electrical
- High-efficiency drivers paired with long-life LEDs
- Service life >50,000 hours (L70)
- Universal voltage 120V ~ 277V (347V/480V available)
- Power Factor (PF) ≥ 0.9
- Total Harmonic Distortion (THD) ≤ 20%
