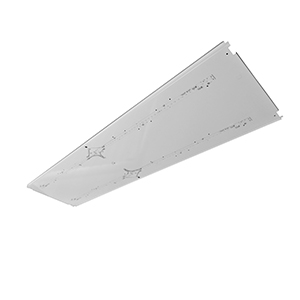

RCIT400
LED Retrofit Solution for 14" Wide Vapor Tight Luminaires
Applications: Commercial, Corner Light
Features
- 0-10V dimming driver standard
- Includes easy-to-read installation instructions
- Pre-punched holes to install the necessary hardware
- 2 safety cables pre-installed
- Supports California Title 24 compliance
Options
- Controls
- Tunable white available (2700K – 6500K)
- Emergency battery pack
- Painted after fabrication
- Customization available upon request
Construction
- 22 ga. cold rolled steel LED cover tray
- Compatible with SLP® Citadel4™ 4′ enclosure
Finish
- Pre-painted
- Baked white polyester finish
- Minimum reflectance 86%
Optical
- 22 ga. cold rolled steel LED cover tray
- Compatible with SLP® Citadel4™ 4′ enclosure
Listing
- UL USA and Canada Listed
- Suitable for damp locations
Warranty
- 5-year limited warranty
- 10-year limited warranty available
Electrical
- High-efficiency drivers paired with long-life LEDs
- Service life >50,000 hours (L70)
- Universal voltage 120V ~ 277V (347V/480V available)
- Power Factor (PF) ≥ 0.9
- Total Harmonic Distortion (THD) ≤ 20%
