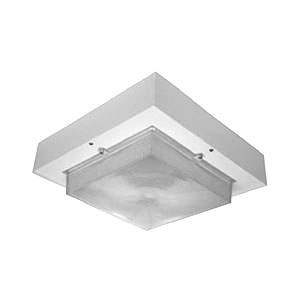

BCL100
Wet Location Security Canopy
Applications: Canopies, Stairwells, Pedestrian Tunnels, Schools
Standard Dimensions: 1′ x 1′
Features
- 0-10V dimming driver standard
- Wet location (UL Listed with sprinkler test)
- Supports California Title 24 compliance
- Safety cables attached to enclosure and cover
Options
- Full 90 degree cutoff to prevent light leakage
- Sensors and controls
- Custom housing colors
- Tamper-proof screws
- Pendant mounting adapter
- Emergency battery pack
- Customization available upon request
Construction
- 20 gauge electro-galvanized steel construction
- Neoprene gasketing on rear of housing
- Aluminum heat sink
- Stainless steel fasteners
- Two side knockouts for ½” conduit (knockouts on opposite sides of fixture)
Finish
- Painted after fabrication
- Baked white powder-coated finish
- Minimum reflectance 90%
Optical
- Injection-molded polycarbonate lens
Listing
- UL USA and Canada Listed
- Suitable for wet locations
Warranty
- 5-year limited warranty
- 10-year limited warranty available
Electrical
- High-efficiency drivers paired with long-life LEDs
- Service life >50,000 hours (L70)
- Universal voltage 120V ~ 277V (347V/480V available)
- Power Factor (PF) ≥ 0.9
- Total Harmonic Distortion (THD) ≤ 20%
